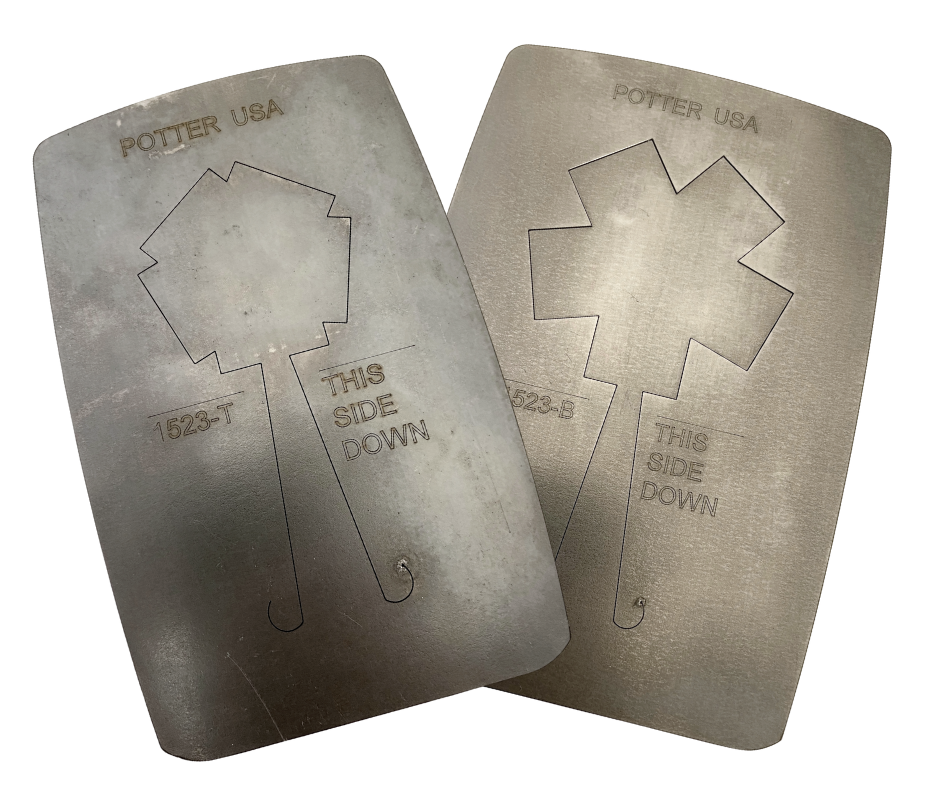

Pancake Die 1523-TB Pentagonal Box Kit

1522-B Triangle Box Base: 1 1/2" Base x 3/4" Tall Walls 1522-T Triangle Box Top: 1 9/16" Base x 1/4" Tall Walls * Makes finished box bottom that is 1 1/2" across and 3/4" tall and the lid is 1 1/2" across and 1/4" deep Designed to be used with 20 GAUGE SHEET METAL.

1525-B Hexagonal Box Base: 1 1/2" Base x 3/4" Tall Walls . Designed to be used with 20 GAUGE SHEET METAL. Overall Pancake Die Dimensions: 6-1/2" x 4-1/16" 1525-T Hexagonal Box Top: 1 9/16" Base x 1/4" Tall Walls Overall Pancake Die Dimensions: 6-5/16" x 4" *Makes finished box bottom that is 1 1/2" across and 3/4" deep and a box top that is 1 1/2" across and 1/4" deep

1524-B Octagonal Box Base: 1 1/2" Base x 3/4" Tall Walls . Designed to be used with 20 GAUGE SHEET METAL. Overall Pancake Die Dimensions: 7-7/16" x 4-15/16" 1524-T Octagonal Box Top: 1 9/16" Base x 1/4" Tall Walls Overall Pancake Die Dimensions: 7-3/16" x 4-3/4" *Makes finished box bottom that is 1 1/2" across and 3/4" tall and the top is 1 1/2" across and 1/4" deep

This die can be used to make a small box that is 2" x 2" x 1" tall. Designed to be used with 20 GAUGE SHEET METAL. Cutting area is 4" across each direction at the largest points. The smaller sides are 1" The outer area of the die is 7" wide x 8 1/2" high. ***Will not fit in the discontinued Potter USA medium press***

This die can be used to make a lid for the 2" box (made with Pancake Die 1518). Designed to be used with 20 GAUGE SHEET METAL. Cutting area is 3" across each direction at the largest points. The smaller sides are 1/2"" The outer area of the die is 5 1/4" wide x 7 3/4" high. ***Will not fit in the discontinued Potter USA medium press***

Design Size: 2" x ~6-3/16". Each strip of pattern is approximately 3/8" wide. .
