    Pancake Die 1518 Box 2"

    $44.25
    $33.19

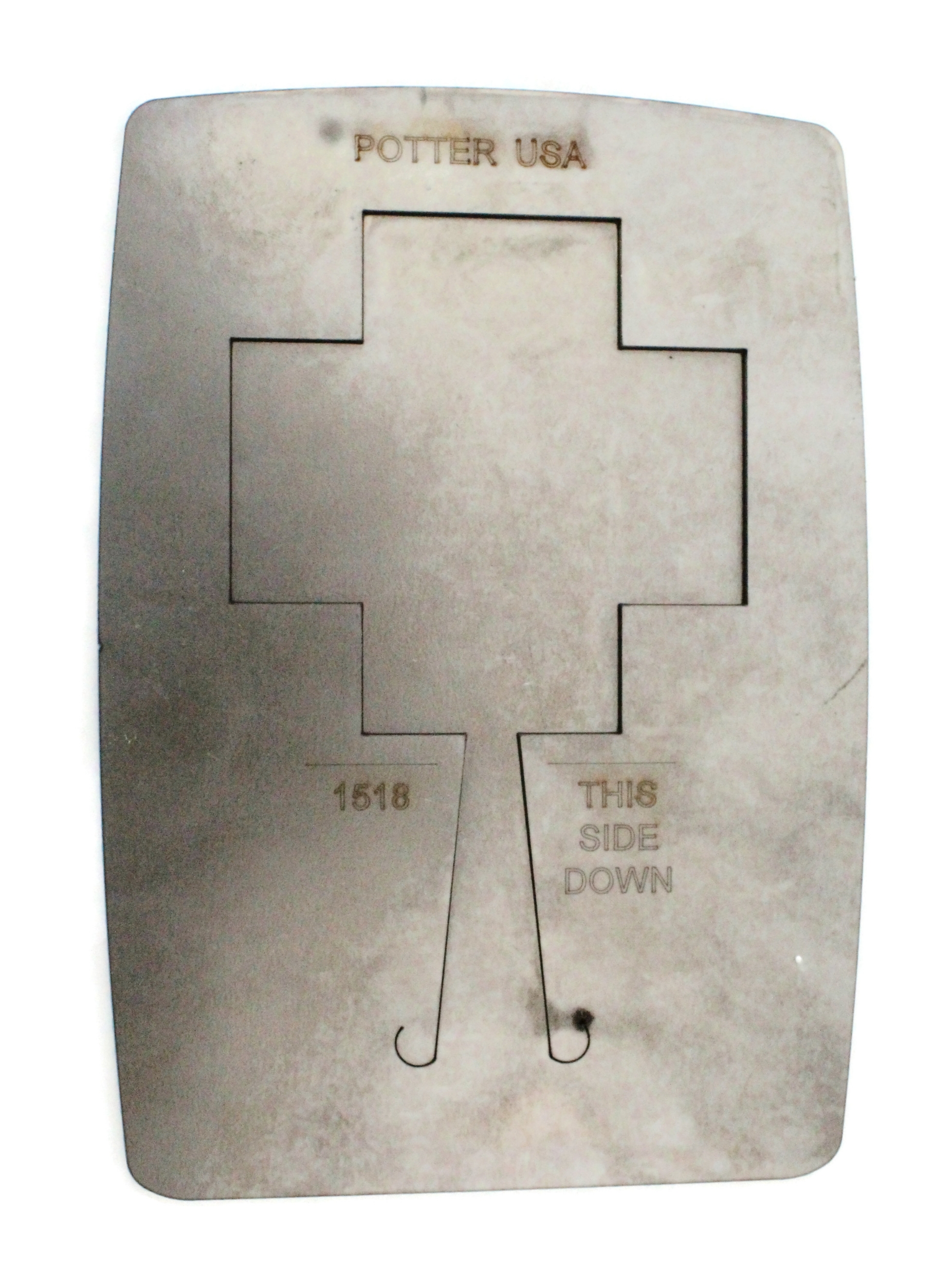

    This die can be used to make a small box that is 2" x 2" x 1" tall. Designed to be used with 20 GAUGE SHEET METAL. Cutting area is 4" across each direction at the largest points. The smaller sides are 1" The outer area of the die is 7" wide x 8 1/2" high. ***Will not fit in the discontinued Potter USA medium press***
    SKU: PD 1518
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: In stock

    This die can be used to make a small box that is 2" x 2"x 1"tall

    Cutting area is 4"  across each direction at the largest points. The smaller sides are 1"

    The outer area of the die is 7" wide x 8 1/2" high

    Will not fit in the discontinued Potter USA medium press.

    Potter USA Pancake Die Information:

    1. The pancake dies are designed to cut non-ferrous metal (copper, silver, brass, gold, nickel) 20 gauge and thicker to about 16 gauge.
    2. They work best when the metal is hard. If the metal is too soft, you will get a burr and it will be difficult to remove your part from the die. DO NOT ANNEAL METAL FIRST.
    3. The dies only work in one direction - with words FACE DOWN
    4. I will send them to you pre-sprung so that you know where to put the metal.
    5. If you use metal that is too thick or too thin, it is possible to damage the die.
    6. As long as you stay within the recommended gauges, the dies should last you many years under normal use.

    This die can be used to make a small box that is 2" x 2"x 1"tall

    Cutting area is 4"  across each direction at the largest points. The smaller sides are 1"

    The outer area of the die is 7" wide x 8 1/2" high

    Will not fit in the discontinued Potter USA medium press.

    Potter USA Pancake Die Information:

    1. The pancake dies are designed to cut non-ferrous metal (copper, silver, brass, gold, nickel) 20 gauge and thicker to about 16 gauge.
    2. They work best when the metal is hard. If the metal is too soft, you will get a burr and it will be difficult to remove your part from the die. DO NOT ANNEAL METAL FIRST.
    3. The dies only work in one direction - with words FACE DOWN
    4. I will send them to you pre-sprung so that you know where to put the metal.
    5. If you use metal that is too thick or too thin, it is possible to damage the die.
    6. As long as you stay within the recommended gauges, the dies should last you many years under normal use.
