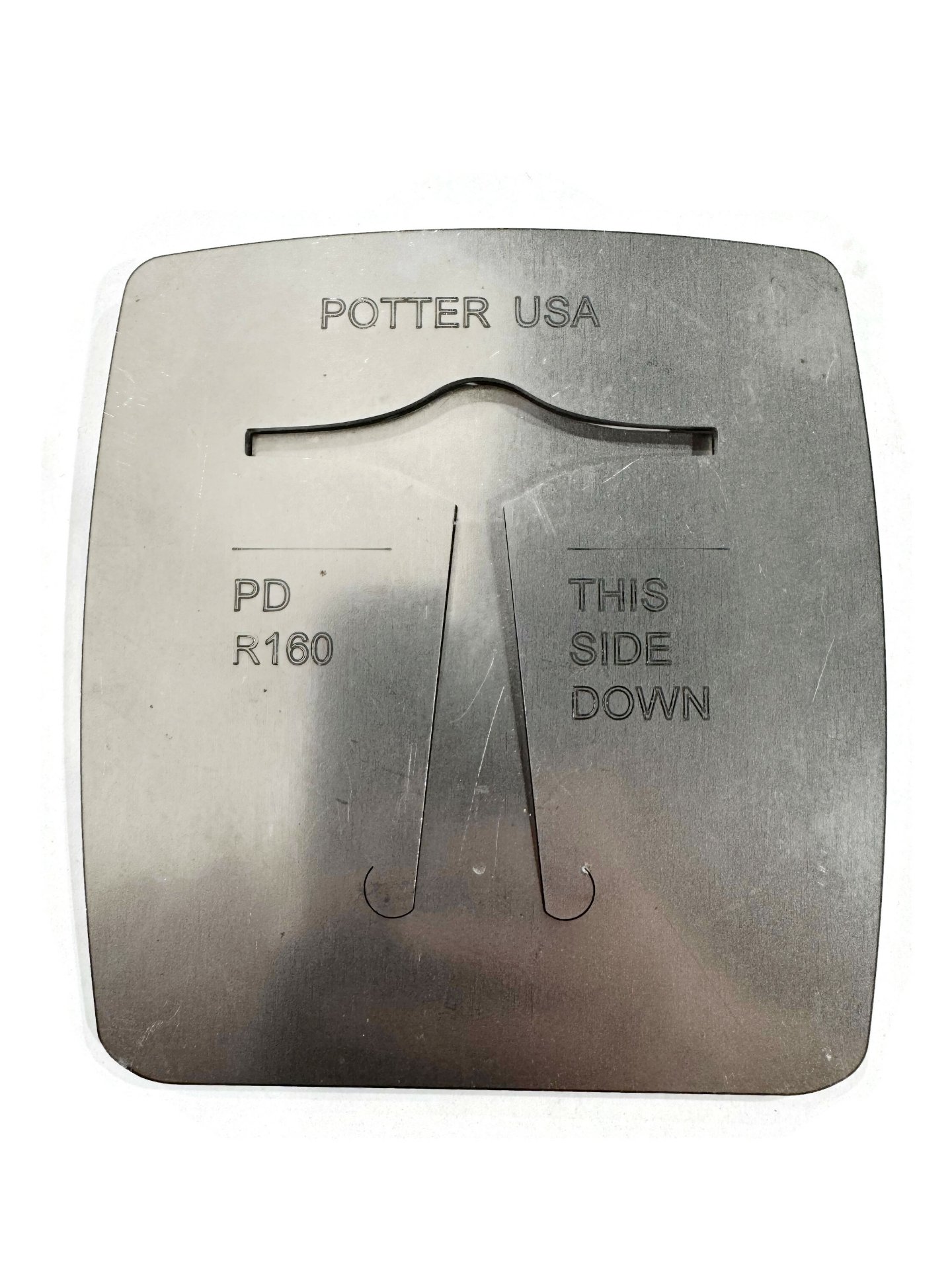

Pancake Die PD R160 Poison Ring

Use this pancake die to cut two strips of metal (connected by a short tab that is easily removed with saw or shear). These strips, when soldered and formed round, create a pair of telescoping rings. Use the two rings as a lid and container for a poison ring, small container pendant, or just a teeny tiny box. Design: 2" x 1" Die: 6-1/2" x 3-3/8" Longer strip measures: 51mm long x 6mm wide and creates a 17mm (OD) diameter ring. Shorter strip measures: 44mm x 6mm wide and creates a 15mm (OD) diameter ring.. THIS SET IS INTENDED FOR USE WITH 20 GAUGE FULLY HARD Sheet if you want to make a fitted lid and container. If you use a different gauge the parts will not fit as well together. If your metal is not full hard it may become stuck in the die. If you would like to purchase a circle pancake die that fits well with these two rings, the 3/4” diameter and 5/8" diameter circles work well. If you would like to purchase a matching ring blank die, there are many that would work, but PD R16o works perfectly.

Pancake Die Opener

Shape Measurements: 2-13/16" x 3-1/16" Die Measurements: 7-1/2" x 4-11/16"

This kit includes 5 pancake dies which work together to form a 1" round lidded container. Use this pancake die set with 18-gauge sheet metal to create 1" round boxes with fitted lids! The kit includes pancake dies for two types of lids - over-fitted lids (lids that fit over the container), and inside-fitted lids (lids that have an inner rim that fits down into the container). These small containers are perfect for ring boxes, little gifts, small treasures, pill boxes, or whatever you can think of! We’ve done all the math for you so you don’t have to figure out how to make all the parts fit together yourself - just cut, solder, form, and assemble! **The die measurements have all been done for 18 gauge metal and a snug fitted lid. You can use other gauges (16-22) but it will change the fit of the lid and container. This set includes the following: PD1913: Container body measures 83mm x 20mm, overall die measures 5-3/8" x 5-5/16" PD1914: Over-Fitted Lid measures 91mm x 10mm, overall die measures 5-7/16" x 4-15/16" PD1915: Inside-Fitted Lid Outer Band measures 83mm x 10mm, overall die measures 5-7/16" x 4-15/16" PD1916: Inside-Fitted Lid Inner Band measures 77mm x 10mm, overall die measures 5-7/16" x 4-15/16" PD1917: Lid top and container bottom measures 28mm diameter, overall die measures 3-3/8" x 5-5/8"

Bag of 10 pieces of urethane for use with impression dies. 95 durometer sheet. Pieces range from approximately 1/2 inch squares. Thickness of each piece is 1/4 inch. Note: These will fray, crack and deform with use, but you will get many uses from them.
