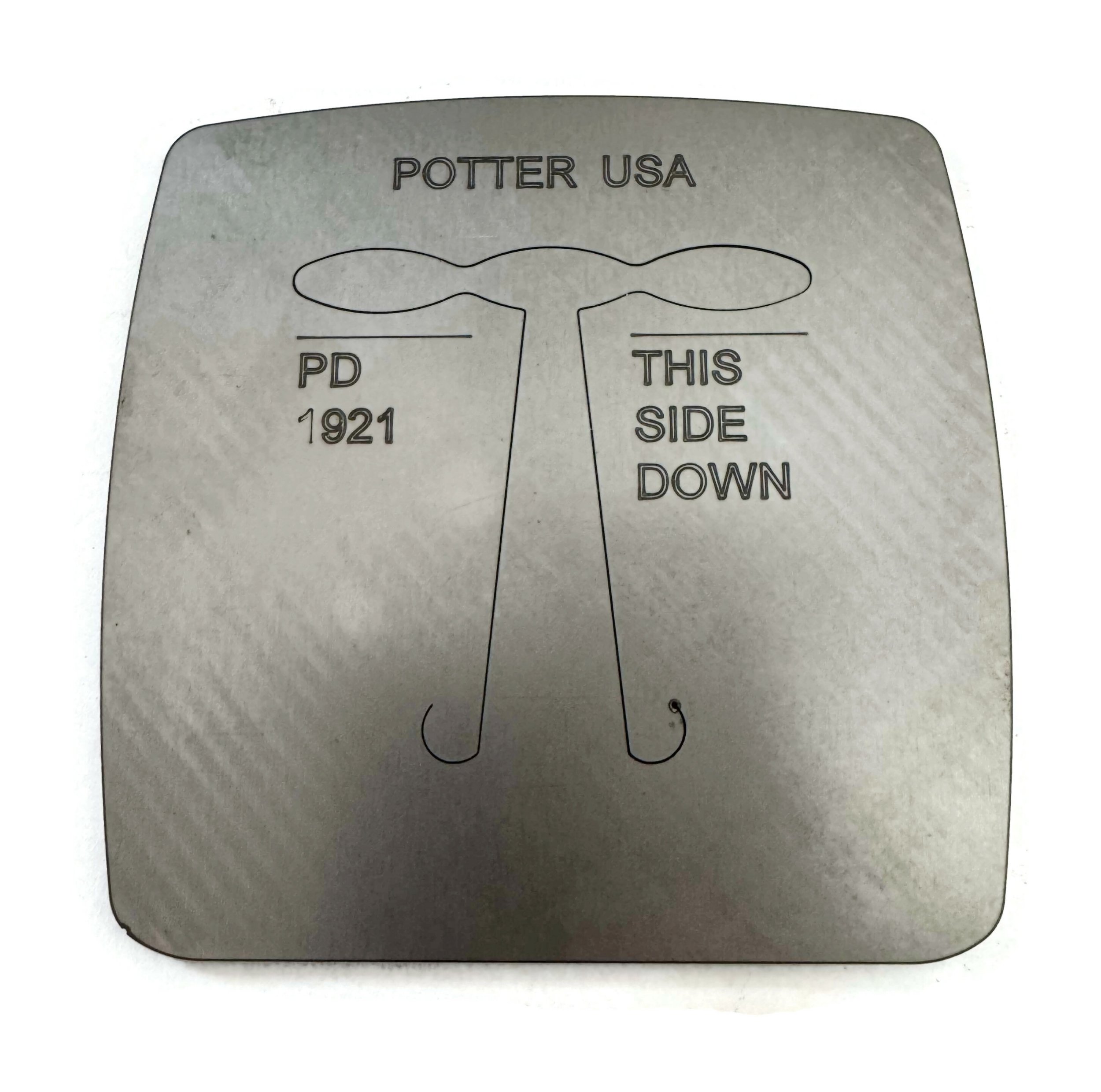

Pancake Die 1921 Triple Bail Ring

Bag of 10 pieces of urethane for use with impression dies. 95 durometer sheet. Pieces range from approximately 1/2 inch squares. Thickness of each piece is 1/4 inch. Note: These will fray, crack and deform with use, but you will get many uses from them.

This spacer is 4.5'' x 7.75'' and 1'' thick.

This spacer measures 7-3/4" in length, 4-1/2" in width, and is 1/2" thick. It is nonmagnetic. Spacers are used in the press to lessen the amount of effort needed to extend the jack and activate the items being used in the press. Top and bottom platens are not meant to touch - it will cause the jack to overextend and cause leaking, or for jack to fail. Always use spacers on lower platen to take up space between platens.

1834: Left: 19.8 x 14mm. Right: 14.3 x 16.5mm. Die: 5-1/8" x 3-1/2". 1835: Left: 16.8 x 16.5mm. Right: 20.6 x 13mm. Die: 5-1/8" x 3-3/8".

Use this pancake die to cut two strips of metal (connected by a short tab that is easily removed with saw or shear). These strips, when soldered and formed round, create a pair of telescoping rings. Use the two rings as a lid and container for a poison ring, small container pendant, or just a teeny tiny box. Silver ring samples by Marriane Barton Jennings. Design: 2" x 1" Die: 6-1/2" x 3-3/8" Longer strip measures: 51mm long x 6mm wide and creates a 17mm (OD) diameter ring. Shorter strip measures: 44mm x 6mm wide and creates a 15mm (OD) diameter ring.. THIS SET IS INTENDED FOR USE WITH 20 GAUGE FULLY HARD Sheet if you want to make a fitted lid and container. If you use a different gauge the parts will not fit as well together. If your metal is not full hard it may become stuck in the die. If you would like to purchase a circle pancake die that fits well with these two rings, the 3/4” diameter and 5/8" diameter circles work well. If you would like to purchase a matching ring blank die, there are many that would work, but PD R16o works perfectly.
