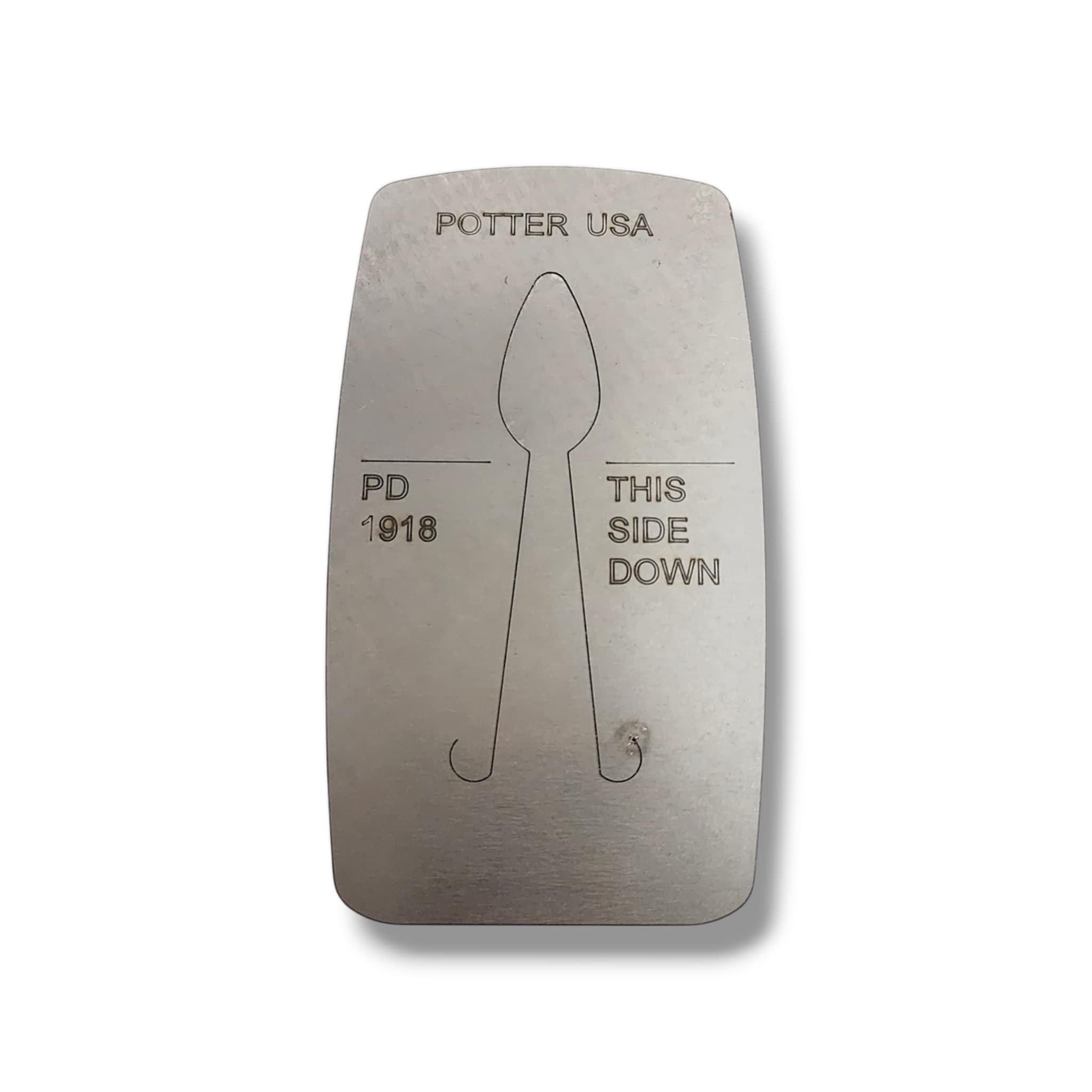

Pancake Die 1918 Elongated Teardrop

This spacer is 4.5'' x 7.75'' and 1'' thick.

This spacer measures 7-3/4" in length, 4-1/2" in width, and is 1/2" thick. It is nonmagnetic. Spacers are used in the press to lessen the amount of effort needed to extend the jack and activate the items being used in the press. Top and bottom platens are not meant to touch - it will cause the jack to overextend and cause leaking, or for jack to fail. Always use spacers on lower platen to take up space between platens.

This die must be used in a hydraulic press. This die is coordinated to work with PD 1608. Shape measures 1" x 3/4". Overall die measures 5" x 3-3/8".

This die must be used in a hydraulic press. Shape measures 1-5/16" x 1". Overall die measures 5-1/2" x 3-3/8".

Design: ~1" x ~1/2" Die itself: 3" x 4-1/8"

Teardrop Pancake Die Medium 1 1/8" long, and 11/16" at widest point
