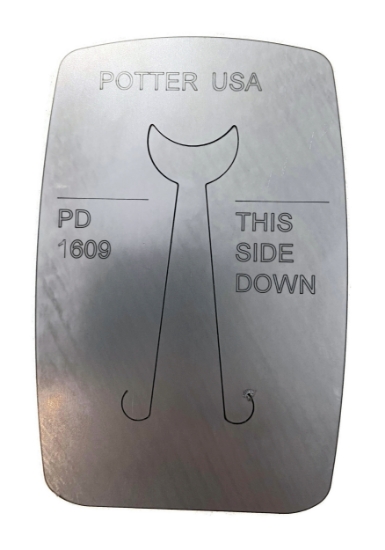

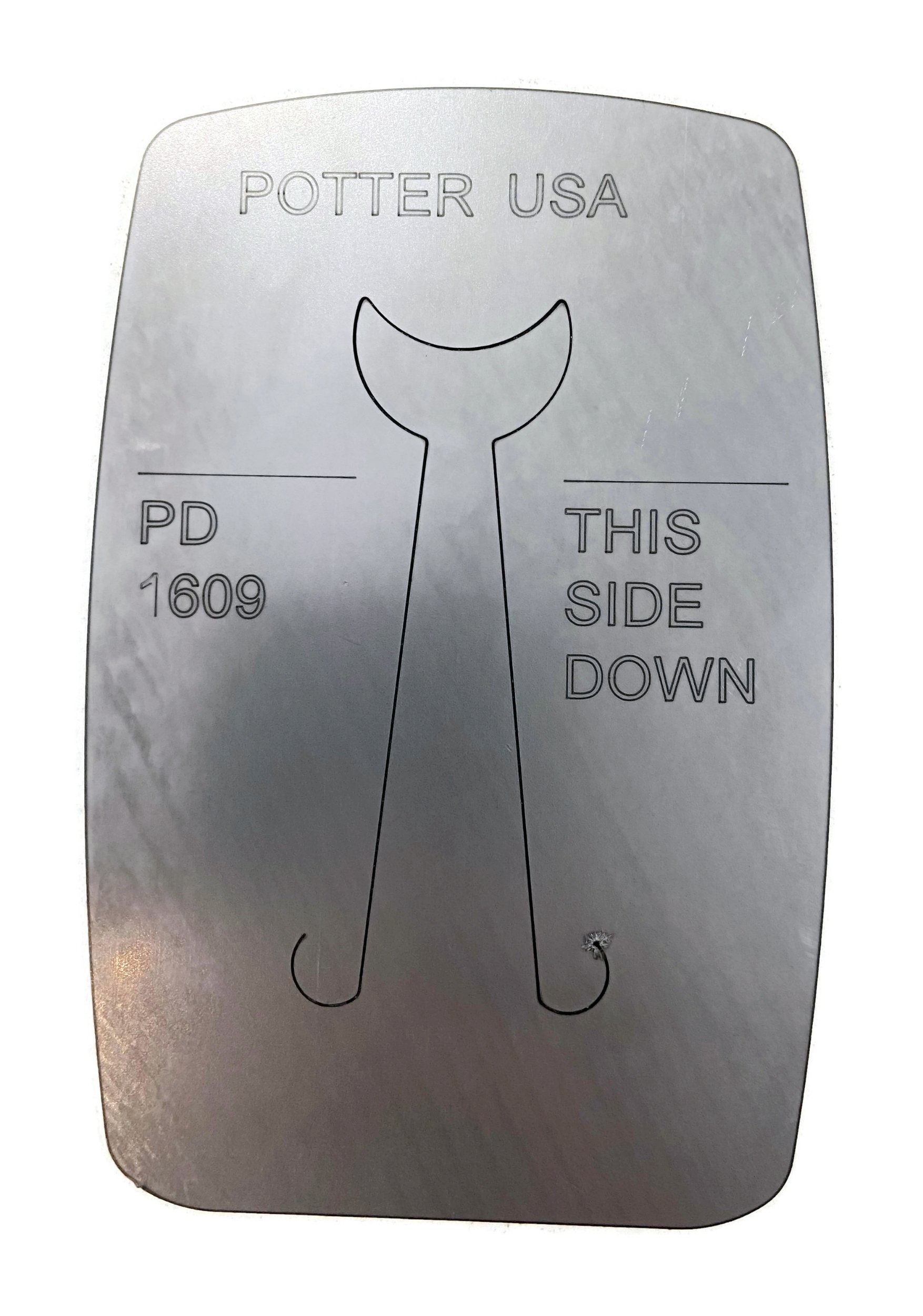

Pancake Die 1609 Crescent

This die must be used in a hydraulic press. This die is coordinated to work with PD 1609. Shape measures 1.5" x 7/8". Overall die meaures 5-1/4" x 3-1/2".

This spacer is 4.5'' x 7.75'' and 1'' thick. Non magnetic Spacers are used in the press to lessen the amount of effort needed to extend the jack and activate the items being used in the press. Top and bottom platens are not meant to touch - it will cause the jack to overextend and cause leaking, or for jack to fail. Always use spacers on lower platen to take up space between platens.

This spacer measures 7-3/4" in length, 4-1/2" in width, and is 1/2" thick. It is nonmagnetic. Spacers are used in the press to lessen the amount of effort needed to extend the jack and activate the items being used in the press. Top and bottom platens are not meant to touch - it will cause the jack to overextend and cause leaking, or for jack to fail. Always use spacers on lower platen to take up space between platens.

Overall Design Size: approximately 2" x 6-7/8". Designed for use in a rolling mill.

Our redesigned pancake dies are here! Die: 4-11/16" H x 3" W Working Area: 1-5/8" H x 2-3/4" W

Design: 1 1/8" x 3/8" Die itself: 2 1/2" x 3 3/4"
