    20 Ton Standard Jewelry Press (with Jack)

    $1,700.00
    Domestic shipping included (up to $225) and $300 gift card for pancake dies, silhouette dies, impression dies, and texture plates Ships freight, fully assembled to your door. No assembly required.  Includes frame, hose, gauge, jack, Domestic shipping included (up to $225 standard fee) Does not work in conjunction with Lucky Dog promotion. Comes with urethane pieces, 2 spacers, and a $300 credit to your Potter USA account for pancake dies, silhouette dies, impression dies, and texture plates (only applicable to future purchases).
    SKU: 20 ton standard w/ jack
    Availability: In stock
    Free shipping

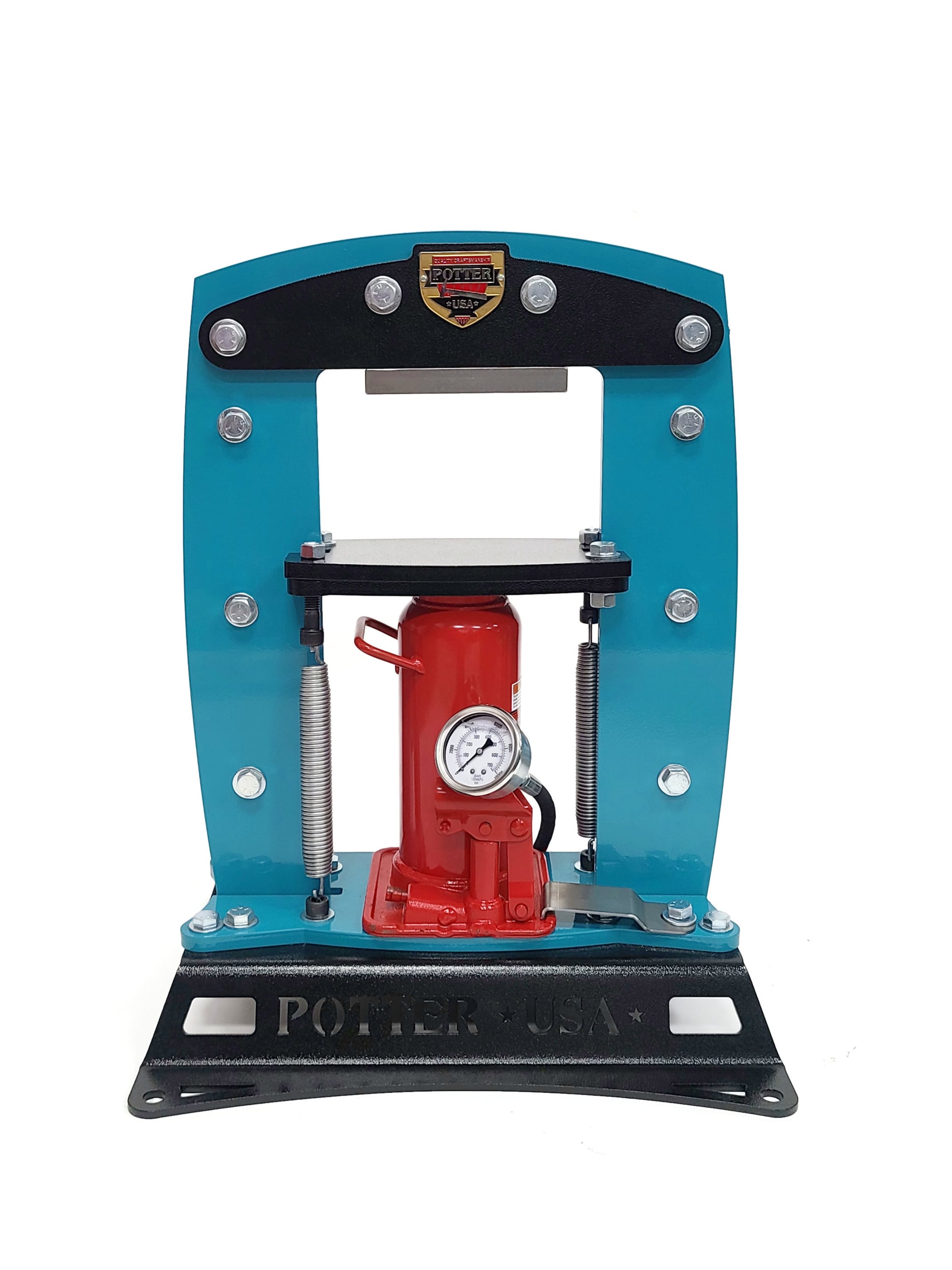

    20 Ton Standard Hydraulic Jewelry Press.

    Ships freight, fully assembled to your door. No assembly required. Domestic shipping now included!

    Includes frame, hose, gauge, jack, Domestic shipping included (up to $225), urethane pieces, 2 spacers, and a $300 credit to your Potter USA account for pancake dies, silhouette dies, impression dies, and texture plates (only applicable to future purchases). Does not work inconjunction with Lucky Dog promotion.

    Needs two people to set up due to its weight!

    Please allow 5 to 7 business days in order to prepare this item for shipment.

    International Sites will be charged additional shipping upon review of the order. We will contact you for payment.

    Shipped FREIGHT.  See notes below.

    FREIGHT DELIVERY: Domestic shipping is now included (up to $225 standard fee)! in the continental US. When order is placed we will do a quote for actual amount of shipping. If you live in a rural area, or busy city district or any other reason an extra fee will be added by Old Dominion, you will be invoiced for the extra fee. Rural customers will save extra fees by picking up the press at the closest depot. Does not work inconjuction with Lucky Dog promotion.

    Truck will deliver to your home - to your door. Any additional requests have fees attached by the shipping company. We will then bill you for the additional fees. If the charge is more, we will notify you and invoice you for the difference in price.

    The Potter USA Press has been designed to safely and efficiently form metal in a jewelry studio environment. It has many features including its 1/2 inch steel plate construction, with no welds on the entire press. Bolts, nuts and support brackets make it extremely strong and rigid. The press is compact and elegantly designed.

    Must be bolted to a strong table for safe use. Bolt to surface through the feet, using 1/2 13 thread bolt or a strong C-clamp. So not use a portable tool chest or any other light table, as it can all fall over during use.

    The magnetic upper platen is 6 inches wide x 2 3/4" in deep by 3/4" high, and the Lower Platen is 8 inches wide x 6 inches deep x 1 inch thick resist flexing and distortion under the most extreme use.

    The upper platen is held in with a bolt and is removable. The upper and lower platens can be replaced with 8 in x 8 in aluminum platens, available for order on our website.

    Outer Dimensions: 23 inches high x 16.5 inches wide x 7 inches long.

    The space between platens is approx. 7 inches if you use a standard height jack, and 9 inches if you use a low profile jack. The low profile jack allows for more space to do deep-draw work.

    The frame has a lifetime warranty. Should it ever be damaged or malfunction in anyway, it will be repaired or replaced at no cost.

    Press is made of 1/2" thick steel plate. It has been tested to far exceed the 20 ton rating. The frame and platens are powder-coated. This is a very durable finish.

    Attributes:

      • Affordable
      • Highly compact
      • Bench mounted
      • Very easy to use
      • Many accessories available
      • Works with other press manufacturer's accessories
      • Lifetime Warranty on press frame
      • Space between platens: 7 inches with a standard height jack or 9 inches with a low profile jack.
      • 6 inch deep x 8 inch wide lower platen
      • Outer dimensions: 23 inches High x 19 inches wide x 13.5 inches deep.
      • Frame is made to allow for transition to an electric hydraulic system if requested.






    20 Ton Standard Hydraulic Jewelry Press.

    Ships freight, fully assembled to your door. No assembly required. Domestic shipping now included!

    Includes frame, hose, gauge, jack, Domestic shipping included (up to $225), urethane pieces, 2 spacers, and a $300 credit to your Potter USA account for pancake dies, silhouette dies, impression dies, and texture plates (only applicable to future purchases). Does not work inconjunction with Lucky Dog promotion.

    Needs two people to set up due to its weight!

    Please allow 5 to 7 business days in order to prepare this item for shipment.

    International Sites will be charged additional shipping upon review of the order. We will contact you for payment.

    Shipped FREIGHT.  See notes below.

    FREIGHT DELIVERY: Domestic shipping is now included (up to $225 standard fee)! in the continental US. When order is placed we will do a quote for actual amount of shipping. If you live in a rural area, or busy city district or any other reason an extra fee will be added by Old Dominion, you will be invoiced for the extra fee. Rural customers will save extra fees by picking up the press at the closest depot. Does not work inconjuction with Lucky Dog promotion.

    Truck will deliver to your home - to your door. Any additional requests have fees attached by the shipping company. We will then bill you for the additional fees. If the charge is more, we will notify you and invoice you for the difference in price.

    The Potter USA Press has been designed to safely and efficiently form metal in a jewelry studio environment. It has many features including its 1/2 inch steel plate construction, with no welds on the entire press. Bolts, nuts and support brackets make it extremely strong and rigid. The press is compact and elegantly designed.

    Must be bolted to a strong table for safe use. Bolt to surface through the feet, using 1/2 13 thread bolt or a strong C-clamp. So not use a portable tool chest or any other light table, as it can all fall over during use.

    The magnetic upper platen is 6 inches wide x 2 3/4" in deep by 3/4" high, and the Lower Platen is 8 inches wide x 6 inches deep x 1 inch thick resist flexing and distortion under the most extreme use.

    The upper platen is held in with a bolt and is removable. The upper and lower platens can be replaced with 8 in x 8 in aluminum platens, available for order on our website.

    Outer Dimensions: 23 inches high x 16.5 inches wide x 7 inches long.

    The space between platens is approx. 7 inches if you use a standard height jack, and 9 inches if you use a low profile jack. The low profile jack allows for more space to do deep-draw work.

    The frame has a lifetime warranty. Should it ever be damaged or malfunction in anyway, it will be repaired or replaced at no cost.

    Press is made of 1/2" thick steel plate. It has been tested to far exceed the 20 ton rating. The frame and platens are powder-coated. This is a very durable finish.

    Attributes:

      • Affordable
      • Highly compact
      • Bench mounted
      • Very easy to use
      • Many accessories available
      • Works with other press manufacturer's accessories
      • Lifetime Warranty on press frame
      • Space between platens: 7 inches with a standard height jack or 9 inches with a low profile jack.
      • 6 inch deep x 8 inch wide lower platen
      • Outer dimensions: 23 inches High x 19 inches wide x 13.5 inches deep.
      • Frame is made to allow for transition to an electric hydraulic system if requested.
