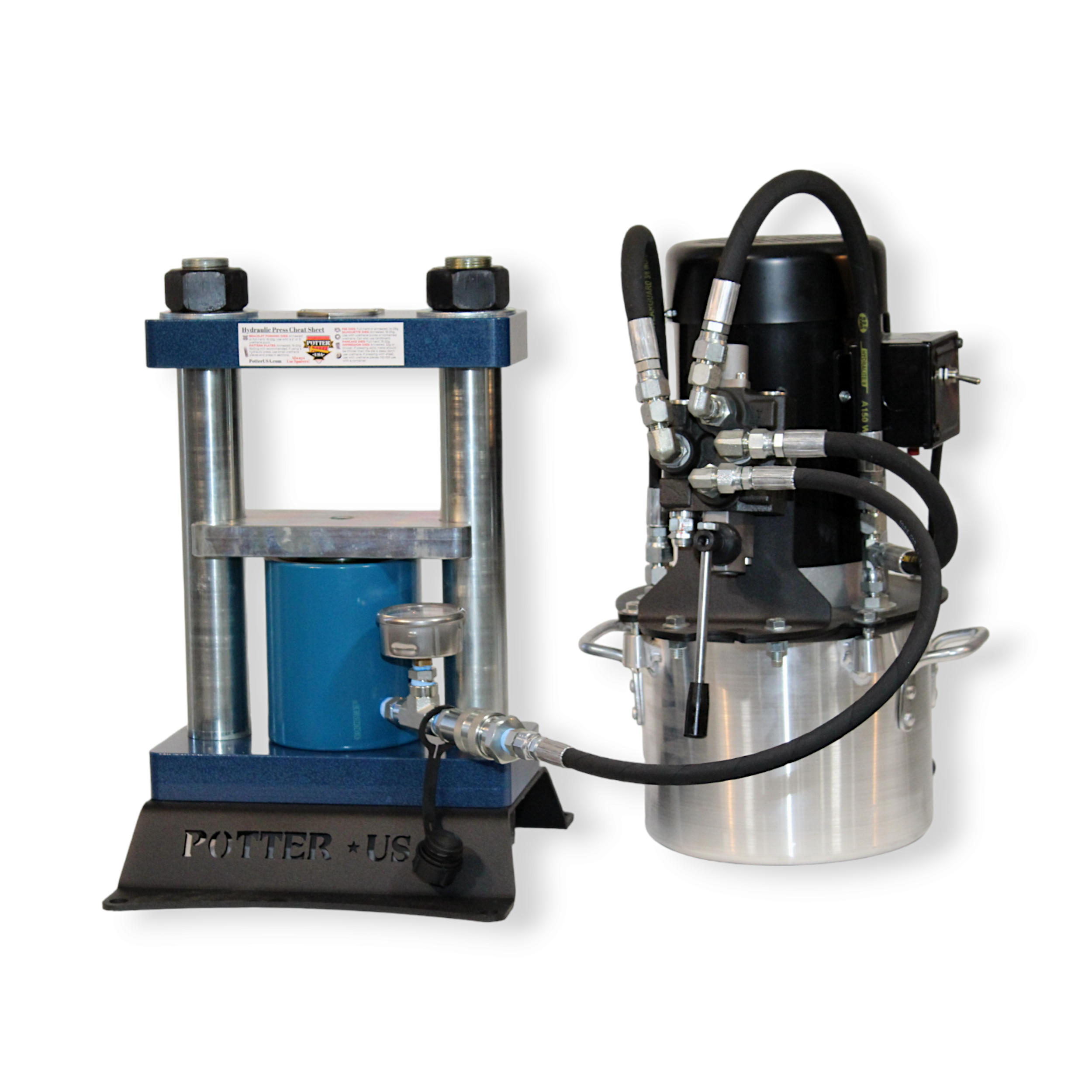

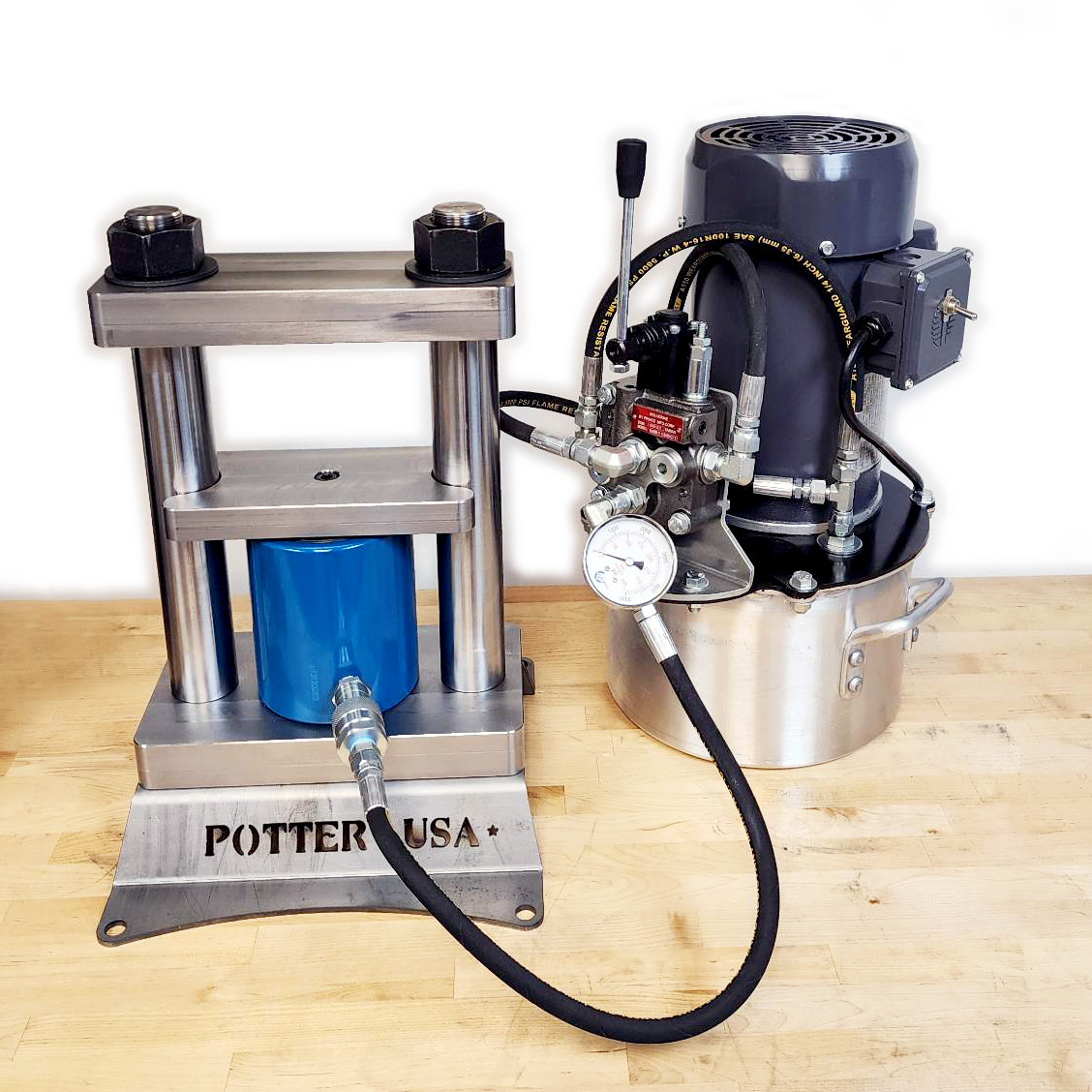

    Rincon Press - Electric - 20-Ton

    $3,045.00
    Please read the FULL DESCRIPTION below before purchasing. Named after one of the mountain ranges that surround Potter USA, the Rincon Press is our newest, most compact, and most economical jewelry hydraulic press. This press will work with pancake dies, impression dies, silhouette dies, and even our bracelet-forming frame.
    SKU: RIN-ELEC
    Free shipping
    Delivery date: Approx. 4-6 weeks

    Rincon Press production lead time is currently 4 to 6 weeks.

    The purchase of a Rincon Press includes 15% OFF impression dies for 3 months AFTER the press is paid in full. To begin receiving this discount, complete your order for the Rincon Press first, then place a separate order for the impression dies. REMEMBER: To receive this discount you MUST be logged in to your account.

    The purchase of this press also includes a $250 shipping allowance. (Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $250.) This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.

    International Customers: Please contact us for a shipping quote before purchasing. [email protected] 520-777-6032 The motor we sell is wired to 110v. To ensure you do not damage the motor, you are responsible for either ensuring you have 110v power OR for purchasing a converter.  Potter USA is not responsible for motor issues due to incompatible power sources.

    ***Be sure you have a current phone number on record. We will give you a call between the hours of 9am-5pm MTS(AZ) to confirm both address and phone number for the freight company.***

    • Height: 18-7/16"
    • Width: 12"
    • Depth: 13"
    • Height and Width of Working Area: 4-11/16" (H) x 6" (W)
    • Upper and Lower Platen Measurements: 6" x 4"
    • Weight of Press Frame with Cylinder: 115 lbs
    • Weight of Electric Motor/Pump: 75 lbs without oil
    • Total Weight of Press Frame and Pump (without oil): 190 lbs.
    • Electric Motor/Pump: 19-1/2" x 15" x 14"
    • Approx. Space Needed on Workbench for Press and Motor: 35" x 20"
    • 5000 psi gauge included (will only need 3000 psi for any tools we sell).  Watch Kevin discuss psi here: (40:25 mark) https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
    • Cylinder: 2" stroke (you WILL need spacers, 3-4 qty.)
    • Current aluminum spacers work with this press. Insert them lengthwise into the press, rather than horizontally.
    • Parts are zinc plated to prevent rust. The base will be powder-coated black. Cylinder and pump colors may vary. The handle/pump/electric cylinder may be different than what appears in photos. You cannot choose a color.
    • The press does NOT need to be bolted down, but can be if desired.
    • The lower platen is bolted to the cylinder to prevent tipping.
    • The press frame DOES NOT flex.
    • Lifetime warranty on press frame, 2-year warranty on the cylinder and other parts.

    If you already own an electric press from Potter USA, you'll be able to attach that motor to this press. If this is something you're interested in, please send an email to [email protected] c/o Adolfo, and include a photo of your current press setup.

    When product arrives, you will need to fill it with about 2 gallons of hydraulic OIL (viscocity of ISO 32 (SAE 10WT), which is available at automotive stores. It is illegal to ship oil in the US Postal Service, so it must be shipped empty. We test it at our shop first and then empty the oil out of the pump before shipping.

    Layaway is available for this press: https://potterusa.com/rincon-press-layaway

    **This press may not accommodate some extra-large pancake dies (some box pancake dies, etc.), but we will be redesigning the pancake dies moving forward so they will work with this press. Dies that will NOT fit are marked on their product listings.

    Links to Kevin talking about this newly designed press (in our Facebook Group, Potter People):
    https://www.facebook.com/kevin.potter.12935/videos/1526397787863431/?idorvanity=1253577991351417

    https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417





    Rincon Press production lead time is currently 4 to 6 weeks.

    The purchase of a Rincon Press includes 15% OFF impression dies for 3 months AFTER the press is paid in full. To begin receiving this discount, complete your order for the Rincon Press first, then place a separate order for the impression dies. REMEMBER: To receive this discount you MUST be logged in to your account.

    The purchase of this press also includes a $250 shipping allowance. (Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $250.) This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.

    International Customers: Please contact us for a shipping quote before purchasing. [email protected] 520-777-6032 The motor we sell is wired to 110v. To ensure you do not damage the motor, you are responsible for either ensuring you have 110v power OR for purchasing a converter.  Potter USA is not responsible for motor issues due to incompatible power sources.

    ***Be sure you have a current phone number on record. We will give you a call between the hours of 9am-5pm MTS(AZ) to confirm both address and phone number for the freight company.***

    • Height: 18-7/16"
    • Width: 12"
    • Depth: 13"
    • Height and Width of Working Area: 4-11/16" (H) x 6" (W)
    • Upper and Lower Platen Measurements: 6" x 4"
    • Weight of Press Frame with Cylinder: 115 lbs
    • Weight of Electric Motor/Pump: 75 lbs without oil
    • Total Weight of Press Frame and Pump (without oil): 190 lbs.
    • Electric Motor/Pump: 19-1/2" x 15" x 14"
    • Approx. Space Needed on Workbench for Press and Motor: 35" x 20"
    • 5000 psi gauge included (will only need 3000 psi for any tools we sell).  Watch Kevin discuss psi here: (40:25 mark) https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
    • Cylinder: 2" stroke (you WILL need spacers, 3-4 qty.)
    • Current aluminum spacers work with this press. Insert them lengthwise into the press, rather than horizontally.
    • Parts are zinc plated to prevent rust. The base will be powder-coated black. Cylinder and pump colors may vary. The handle/pump/electric cylinder may be different than what appears in photos. You cannot choose a color.
    • The press does NOT need to be bolted down, but can be if desired.
    • The lower platen is bolted to the cylinder to prevent tipping.
    • The press frame DOES NOT flex.
    • Lifetime warranty on press frame, 2-year warranty on the cylinder and other parts.

    If you already own an electric press from Potter USA, you'll be able to attach that motor to this press. If this is something you're interested in, please send an email to [email protected] c/o Adolfo, and include a photo of your current press setup.

    When product arrives, you will need to fill it with about 2 gallons of hydraulic OIL (viscocity of ISO 32 (SAE 10WT), which is available at automotive stores. It is illegal to ship oil in the US Postal Service, so it must be shipped empty. We test it at our shop first and then empty the oil out of the pump before shipping.

    Layaway is available for this press: https://potterusa.com/rincon-press-layaway

    **This press may not accommodate some extra-large pancake dies (some box pancake dies, etc.), but we will be redesigning the pancake dies moving forward so they will work with this press. Dies that will NOT fit are marked on their product listings.

    Links to Kevin talking about this newly designed press (in our Facebook Group, Potter People):
    https://www.facebook.com/kevin.potter.12935/videos/1526397787863431/?idorvanity=1253577991351417

    https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
