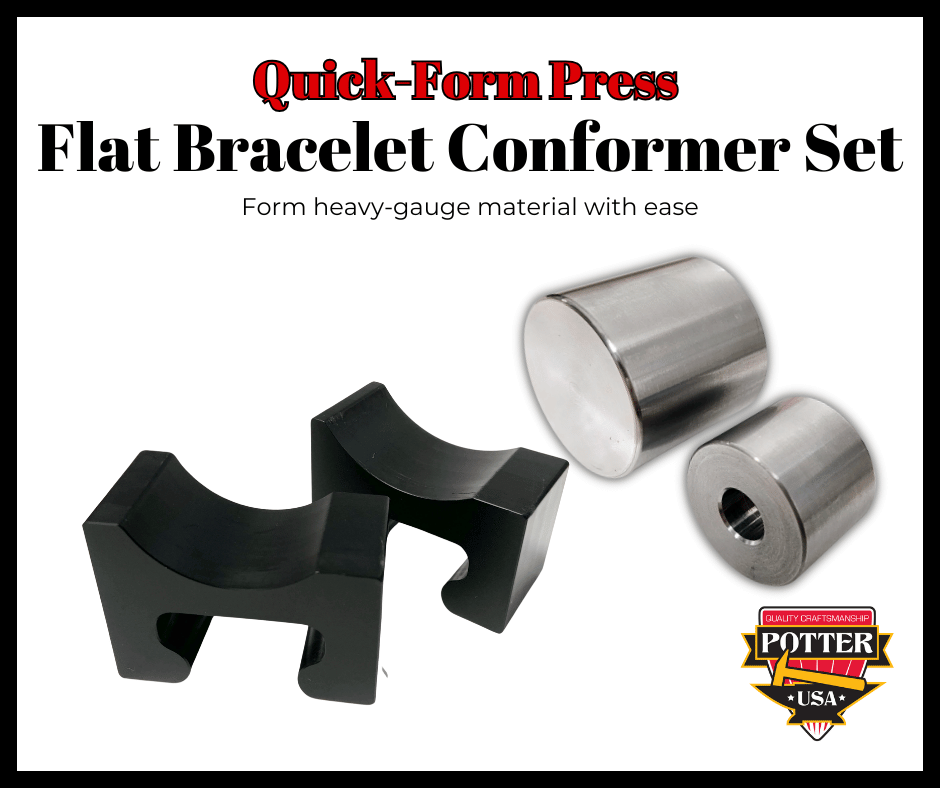

Quick-Form Press Flat Bracelet Conformer Set

An adapter to be used with the Flat Bracelet Conformers. Use ONLY with the Quick-Form Press, and Flat Bracelet Formers.

Two delrin conforming formers in 90° and 60° angles, and a corresponding steel angle forming mandrel. Use ONLY with the Quick-Form Press, Former Adapter, and Flat Bracelet Formers. The conformers must mount on the Former Adapter (sold separately).

Make spinner rings quickly and easily! Use ONLY with the Quick-Form Press and wedge-shaped Urethane Pusher. Must use with Small Tooling Adapter (included with press purchase). Mount to Tool Mounting Plate at 2nd & 4th holes. Use no washers with Urethane Pusher. Widest diameter: 3/4". Narrowest diameter: 1/2". Max ring width: 3/8". Ring size range: ~5-10+

Easily and quickly make synclastic rings in a variety of sizes! Use ONLY with the Quick-Form Press and Urethane Pusher. Must use with Small Tooling Adapter (included with press purchase). Mount to Tool Mounting Plate at 2nd & 4th holes. Use no washers with Urethane Pusher. Large: 18.9mm diameter, 11mm forming width. Small: 15.2mm diameter, 8.9mm forming width.

Use this pancake die to cut two strips of metal (connected by a short tab that is easily removed with saw or shear). These strips, when soldered and formed round, create a pair of telescoping rings. Use the two rings as a lid and container for a poison ring, small container pendant, or just a teeny tiny box. Design: 2" x 1" Die: 6-1/2" x 3-3/8" Longer strip measures: 51mm long x 6mm wide and creates a 17mm (OD) diameter ring. Shorter strip measures: 44mm x 6mm wide and creates a 15mm (OD) diameter ring.. THIS SET IS INTENDED FOR USE WITH 20 GAUGE FULLY HARD Sheet if you want to make a fitted lid and container. If you use a different gauge the parts will not fit as well together. If your metal is not full hard it may become stuck in the die. If you would like to purchase a circle pancake die that fits well with these two rings, the 3/4” diameter and 5/8" diameter circles work well. If you would like to purchase a matching ring blank die, there are many that would work, but PD R16o works perfectly.
