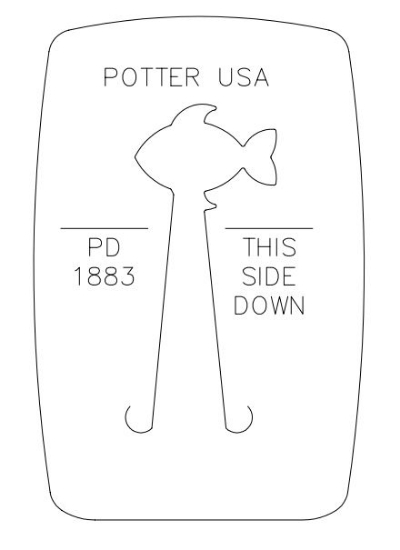

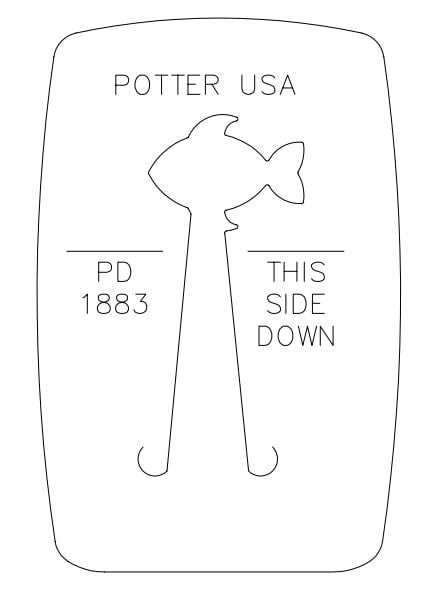

Pancake Die 1883 Small Fish

Set of coordinating pancake die and silhouette die. Pancake die design dimensions (PD1883): 1-1/4" x 1-7/8". (Die itself: 5-11/16" x 4-3/4"). Silhouette die design dimensions (SD328): 9/16" x 1". (Die itself: 2" Diameter).

Silhouette die design dimensions (SD328): 9/16" x 1". (Die itself: 2" Diameter). Also available as part of a bundle: Sm. Fish.

2" circle (Die itself: 3" Diameter).

This is for narrow Synclastic Bracelets. 7/8" wide, 1-15/16"" radius. This is for one former, not a set.

Use this pancake die to cut two strips of metal (connected by a short tab that is easily removed with saw or shear). These strips, when soldered and formed round, create a pair of telescoping rings. Use the two rings as a lid and container for a poison ring, small container pendant, or just a teeny tiny box. Silver ring samples by Marriane Barton Jennings. Design: 2" x 1" Die: 6-1/2" x 3-3/8" Longer strip measures: 51mm long x 6mm wide and creates a 17mm (OD) diameter ring. Shorter strip measures: 44mm x 6mm wide and creates a 15mm (OD) diameter ring.. THIS SET IS INTENDED FOR USE WITH 20 GAUGE FULLY HARD Sheet if you want to make a fitted lid and container. If you use a different gauge the parts will not fit as well together. If your metal is not full hard it may become stuck in the die. If you would like to purchase a circle pancake die that fits well with these two rings, the 3/4” diameter and 5/8" diameter circles work well. If you would like to purchase a matching ring blank die, there are many that would work, but PD R16o works perfectly.

Matches SD 329
