Sorry - this product is no longer available

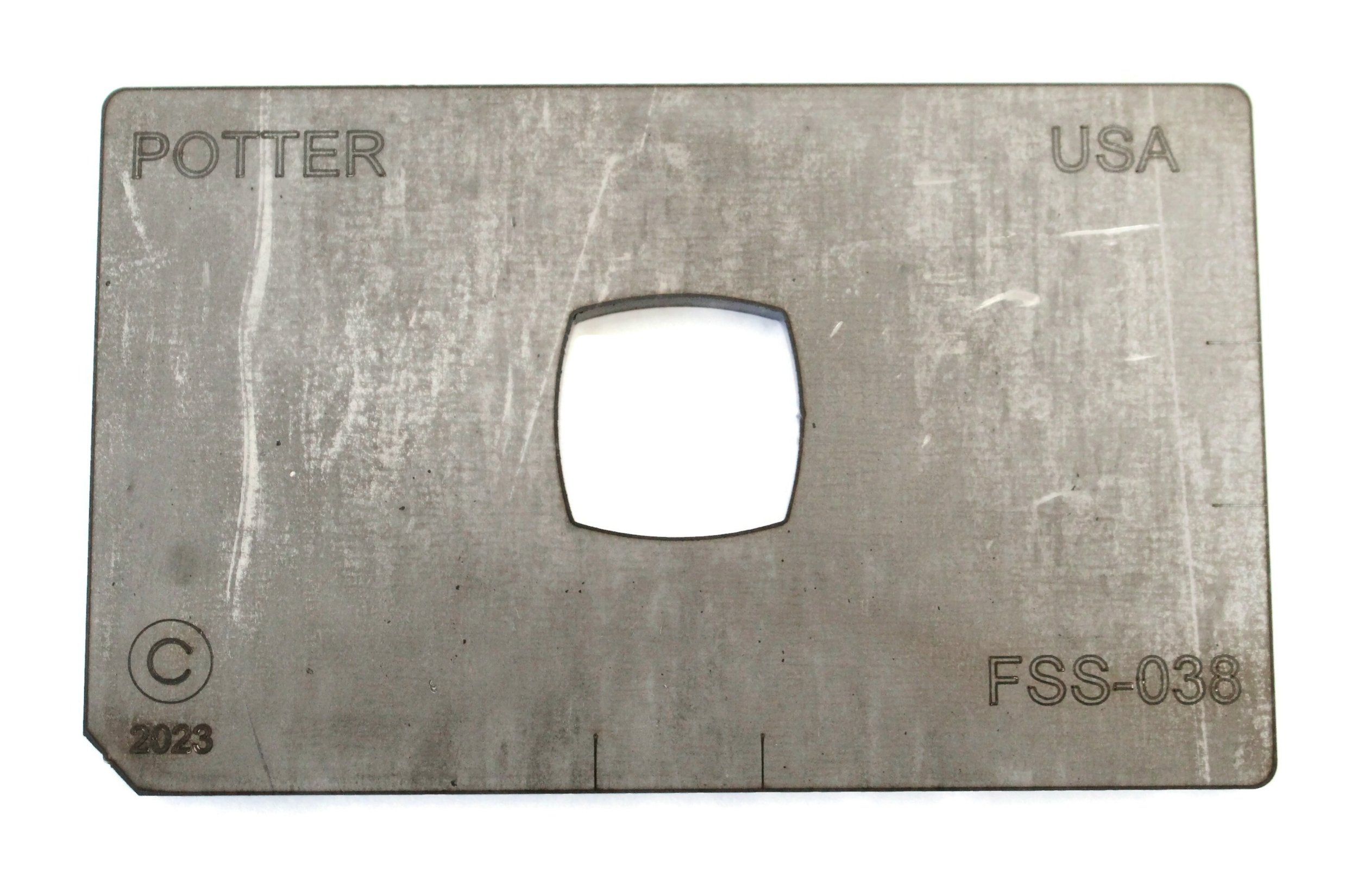

FSS (Fast Stamping System) Die Set FSS-038 Warped Square 1"

Design: 1" x 1" Die Set Includes: Die Top, with precision-welded cutter Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe. MUST BE USED WITH THE FSS DIE SHOE (available separately) Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk
SKU: FSS-038

Design: 1" x 1"

Die Set Includes:
Die Top, with precision-welded cutter
Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die
Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe.

MUST BE USED WITH THE FSS DIE SHOE (available separately)
Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk

$70.00
increase decrease
Availability: 17 in stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Design: 1" x 1"

Die Set Includes:
Die Top, with precision-welded cutter
Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die
Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe.

MUST BE USED WITH THE FSS DIE SHOE (available separately)
Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk

Customers who bought this item also bought

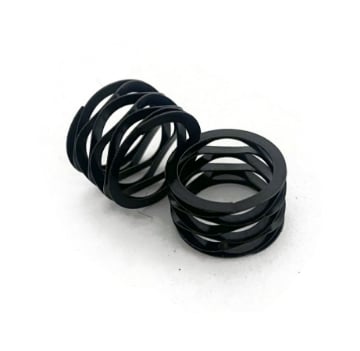

Replacement Springs for FSS Dies

FSS-Springs
Two replacement wave springs for FSS dies.
$5.00

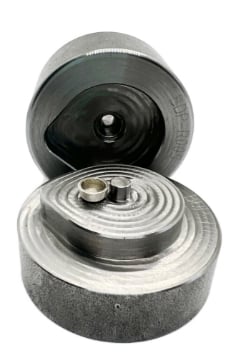

Bezel Die Tool 5mm Round

BDP-R005
This bezel die tool will create as many 5mm round bezels as you'd like to press in your hydraulic press. Recommended for 22 ga. fine silver. The size of disc you start with for the 5mm bezel die is a 10mm disc. The interior bezel height after pressing is ~3mm. You can adjust the height to fit your specific stone.
$86.00

Aluminum Spacer (4.5" x 7.75"x1/2")

Al-SpacerThin
This spacer measures 7-3/4" in length, 4-1/2" in width, and is 1/2" thick. It is nonmagnetic. Spacers are used in the press to lessen the amount of effort needed to extend the jack and activate the items being used in the press. Top and bottom platens are not meant to touch - it will cause the jack to overextend and cause leaking, or for jack to fail. Always use spacers on lower platen to take up space between platens.
$28.50

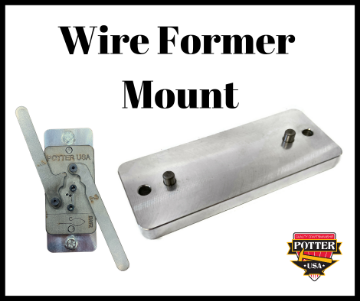

Wire Former Mount

WFMount
This mount is meant to be used with our wire-forming tools. Each wire-forming tool includes two mounting holes that fit securely onto the pegs in this mount. The mount has two holes where it can be secured to a work surface with screws. Once attached to a work surface, each wire-forming tool can be dropped down onto the mount and held securely in place with the pegs. Changing out tools is as easy as lifting the wire former off the pegs and replacing it with a different wire former. The mount measures 5" x 2". Wire forming tools SOLD SEPARATELY.
$25.00

Ear Wire Former No. 3: Kidney

EWF3
This easy-to-use ear wire jig makes it easy to make repeatable, consistently sized kidney-style ear wires. This tool is NOT used in a hydraulic press. Finished ear wire is approx. 7/8" long, 3/8" wide, and features an outward bend in the end of the wire and catch for a secure hold. The loop is approx. 3mm diameter. Recommended for use with half-hard 20g wire.
$84.00

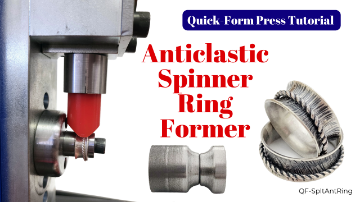

Quick-Form Press Anticlastic Spinner Ring Former
